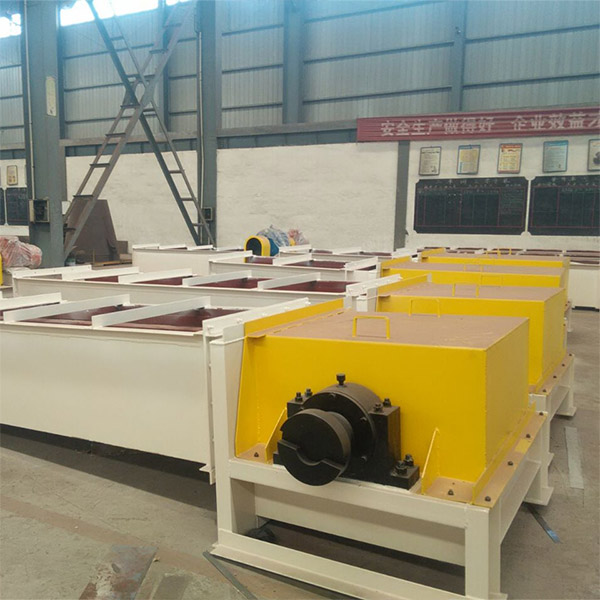

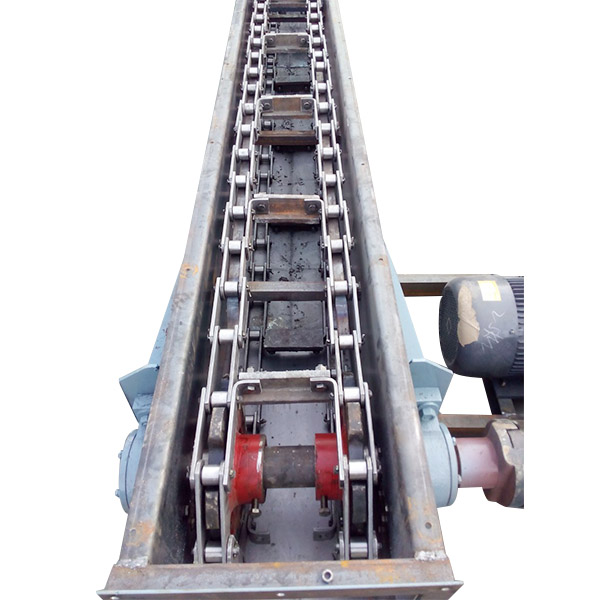

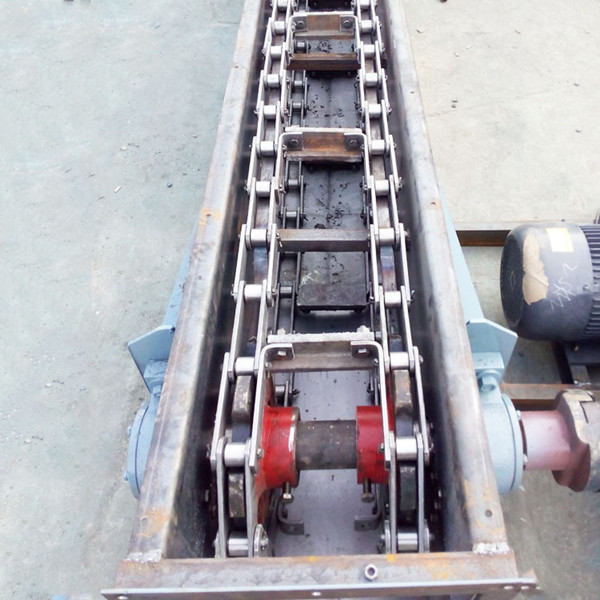

GBL Chain Conveyor is a kind of fixed equipment. The chain conveyor work principle is to surround an endless chain between the active sprocket wheel and the passive sprocket wheel. There are several scales on the chain. The driving device drives the power through the active sprocket wheel to drive the rotation of the chain.
The Conveyor Machine is mainly used for distributing or transporting all kinds of loose materials or viscous materials from storage bin or transfer funnel to crusher or other conveyor equipment. It can transport massive, granular and powdery materials, as well as heavy, sharp, hot, abrasive and corrosive material.
| Specification Type | Production Capacity | Material Granularity | Running Speed | Conveyor Length | Power | Deceleration Model |
|---|---|---|---|---|---|---|
| (t/h) | (mm) | (m/min) | (mm) | (Kw) | (JZQ) | |
| GBL400 | 20 | 130 | 0.8-3 | ~10 | 2.2 | 250 |
| >10-20 | 3 | 350 | ||||
| >20-30 | 4 | 350 | ||||
| >30-40 | 5.5 | 400 | ||||
| GBL500 | 25 | 150 | 0.8-3 | ~10 | 3 | 350 |
| >10-20 | 4 | 400 | ||||
| >20-30 | 5.5 | 400 | ||||
| >30-40 | 7.5 | 500 | ||||
| GBL650 | 35 | 200 | 0.8-3 | ~10 | 4 | 400 |
| >10-20 | 5.5 | 500 | ||||
| >20-30 | 7.5 | 500 | ||||
| >30-40 | 10 | 650 | ||||
| GBL800 | 55 | 280 | 0.8-3 | ~10 | 5.5 | 500 |
| >10-20 | 7.5 | 650 | ||||
| >20-30 | 10 | 650 | ||||
| >30-40 | 13 | 700 | ||||
| GBL1000 | 70 | 380 | 0.8-3 | ≤30 | 9.5 | 650 |
| >30-50 | 13.2 | 750 |
It is suitable for the conveying of loose material and granular and bulk material without viscosity, especially for the conveying of large bulk material (bulk density < 1.2t/m3) with sharp edges and burning (cement clinker, etc.), and it can also complete cooling, drying, cleaning and other technological processes in the conveying process. All rolling bearings are adopted.
