Product Description

Product Introduction

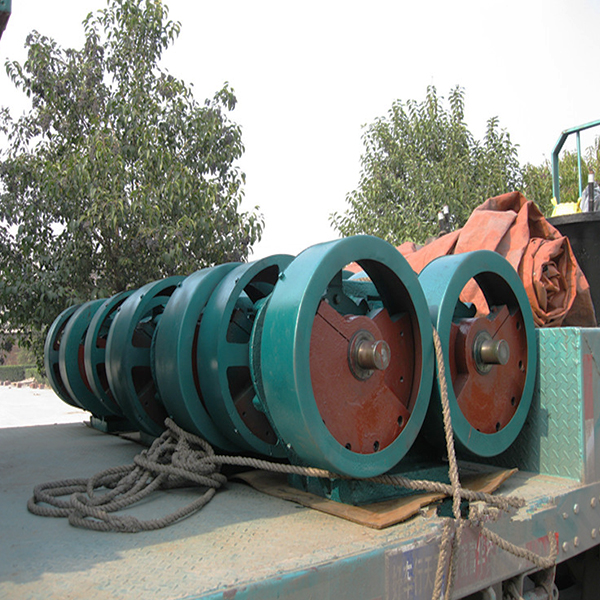

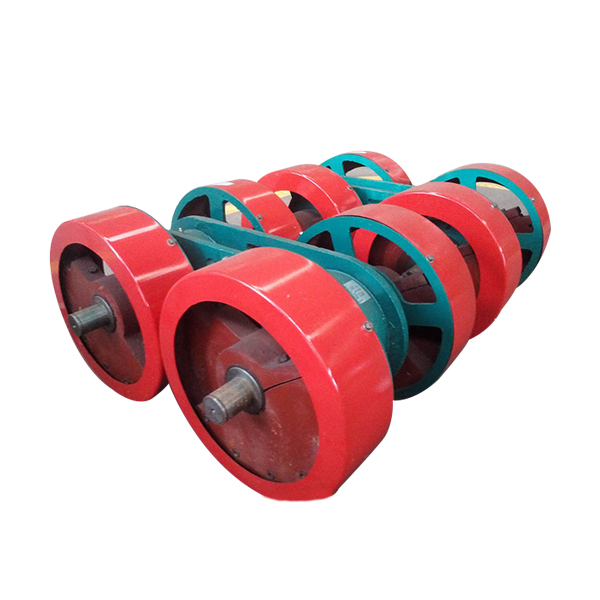

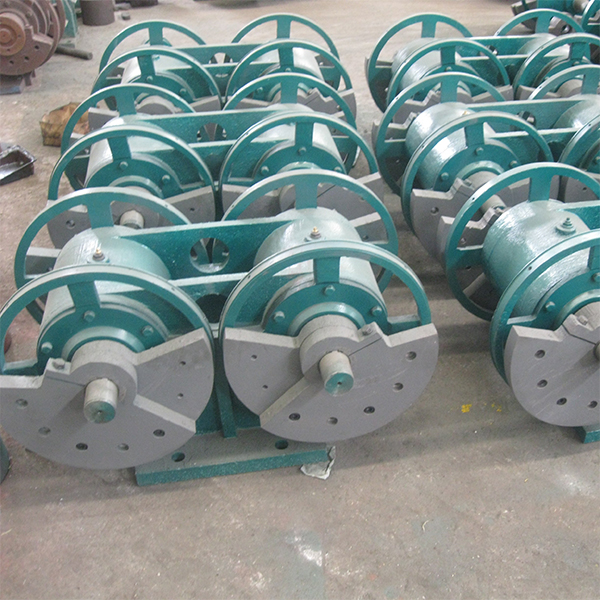

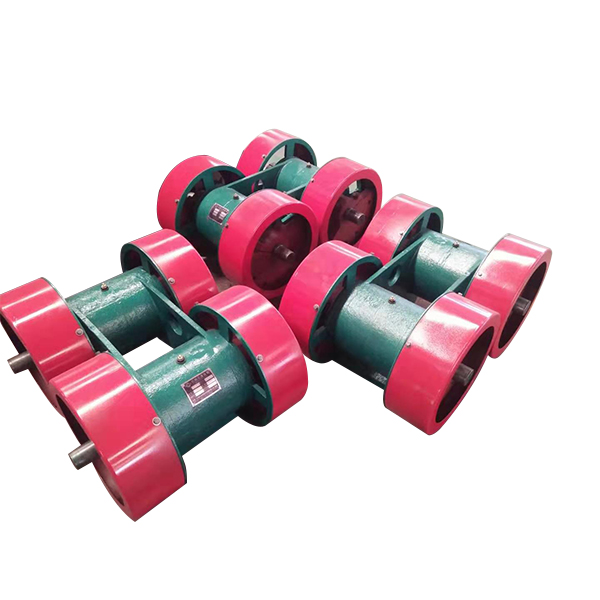

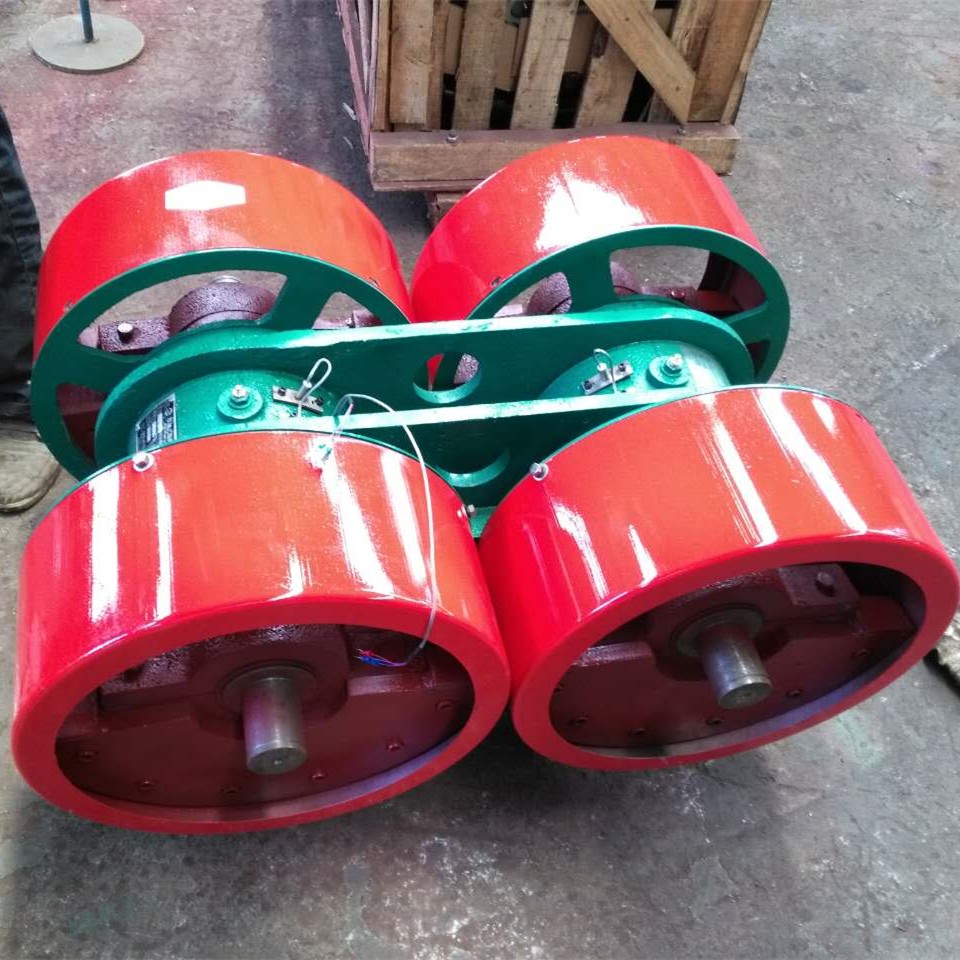

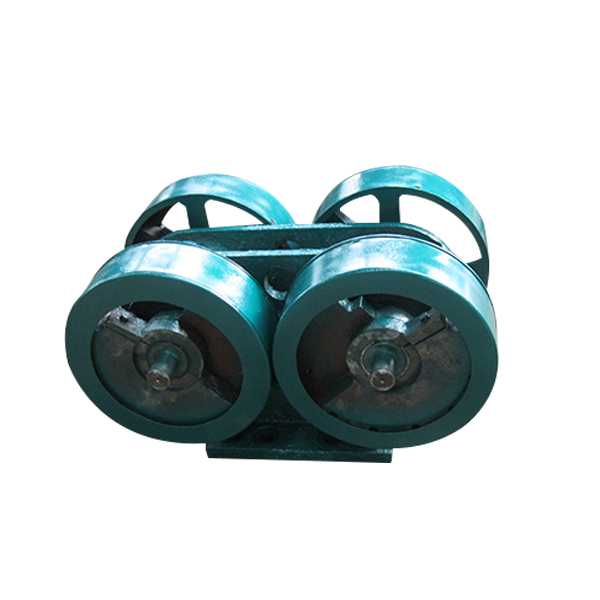

JZ series vibration exciter is a professionally developed type of vibration equipment, designed based on extensive research and manufacturing experience. It features a unique design that separates the power source (motor) from the vibration source through a flexible connection.

This innovation ensures the motor remains stationary, significantly improving bearing heat dissipation and extending the overall service life of the machine. The system is characterized by low maintenance requirements, reliable operation, easy installation, and high energy efficiency, making it an ideal choice for various vibration machinery applications.

Key Features & Maintenance

The seat type vibration exciter is primarily utilized in sieving operations as a core screening component.
The eccentric block operates under the action of external force to generate precise vibration.
Bearings should be regularly lubricated with 2# industrial lithium grease, typically every 3-5 months.
After installation, the unit must undergo a 2-4 hour test run to ensure normal functionality before full operation.
Anchor bolts must be fitted with anti-loosening devices to prevent equipment damage.
Maintenance Schedule: Minor repairs (removing dust and dirt) every 5-6 months; Major repairs annually.

Technical Parameters

Model	Exciting Force (kN)	Power (Kw)	Matching Motor
Model	Exciting Force (kN)	Power (Kw)	Model	Power (Kw)	Voltage (V)
JZ-30-6	30	2*2.2	Y112M-6	2.2	380
JZ-50-6	50	2*3.0	Y132S-6	3
JZ-75-6	75	2*4.0	Y132M1-6	4
JZ-100-6	100	2*5.5	Y132M2-6	5.5
JZ-120-6	120	2*7.5	Y160M-6	7.5
JZ-160-6	160	2*7.5	Y160L-6	7.5

Frequently Asked Questions

1. What are the main applications of the JZ series vibration exciter?

The JZ series seat-type vibration exciter is primarily used as a critical component in screening machines and various other types of vibration machinery to generate consistent vibration.

2. How does the flexible connection design benefit the machine?

By separating the motor from the vibration source through a flexible connection, the motor itself does not vibrate. This improves the heat dissipation of the bearings and significantly extends the service life of the entire unit.

3. What kind of lubricant should be used for the bearings?

It is recommended to use 2# industrial lithium grease. Bearings should be supplemented with this grease every 3 to 5 months depending on operation intensity.

4. What is the recommended maintenance schedule?

A minor repair to remove dust and dirt should be performed every 5-6 months. A major comprehensive repair should be conducted once a year to ensure optimal performance.

5. What precautions should be taken during installation?

During installation, ensure that anchor bolts are equipped with anti-loosening devices. After setup, the machine must run for a 2-4 hour test period to confirm everything is normal before entering full production.

6. Does the JZ series consume a lot of energy?

No, the JZ series is designed for low energy consumption and reliable operation, making it an efficient choice for industrial vibration requirements.
