Product Description

Introduction

PZH series Disc Feeder is a new type of complete Feeding Machine for feeding and dosing bulk materials. Vibrating Feeder can transfer all kinds of bulk materials, such as small, granular and powdery, from silos, hoppers or other storage and transportation devices to the next process.

Suitable for precise feeding and dosing of bulk materials in metallurgy, mining, building materials, coal, electric power, chemical industry, machinery and other fields.

Technical Parameters

Model	Disc Diameter (mm)	Materials		Disk Speed (r/min)	Rated Feeding Capacity (t/h)	Motor
Model	Disc Diameter (mm)	Heap Density (t/m³)	Max Content (mm)	Disk Speed (r/min)	Rated Feeding Capacity (t/h)	Rated Power (Kw)	Rated Speed (r/min)
PZH-20	2000	0.5-2.5	0-80	0.5-5	20-200	11-15	1475
PZH-22	2200				25-250	15-18.5
PZH-25	2500				30-300	18.5-22
PZH-28	2800				40-420	22-30
PZH-30	3000				50-500	30-37
PZH-32	3200				60-600	37-45
PZH-36	3600				90-900	45-55
PZH-40	4000				130-1100	55-75

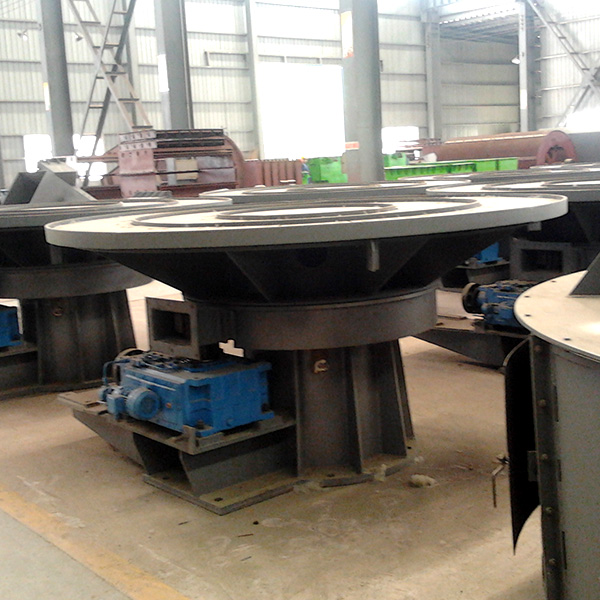

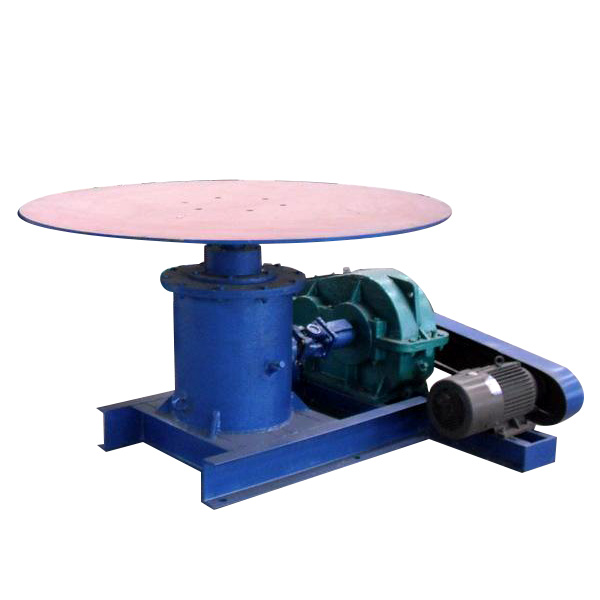

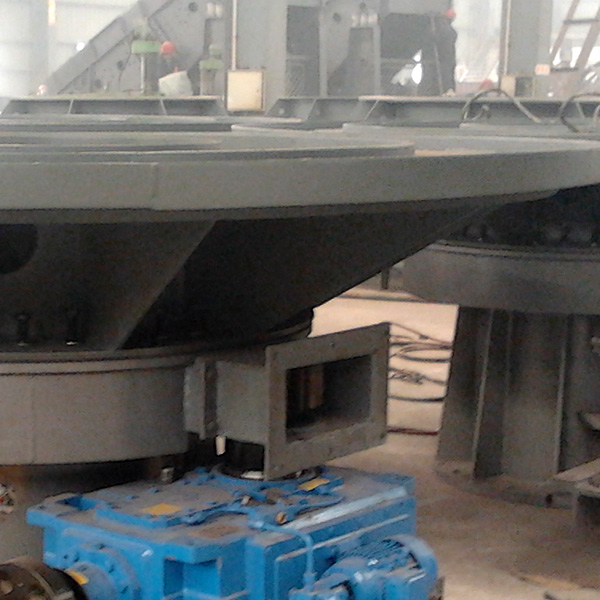

Product Gallery

Working Principle and Structure

The transmission system consists of a reducer and a pair of rotary support gears, which drive the overhead disk to rotate.
The basic configuration of the motor is AC frequency control type, allowing for adjustable speed to meet specific process requirements.
There are three kinds of lining materials on the disk surface: 16Mn lining, high chromium cast iron lining and polymer non-stick oil-bearing nylon lining.
Users can choose lining materials according to their needs, with other custom types available upon request.

Frequently Asked Questions

What are the primary applications of the PZH series Disc Feeder? It is widely used for feeding and dosing bulk materials in industries such as metallurgy, mining, coal, chemical industry, and building materials.

Can the feeding speed of the disk be adjusted? Yes, the motor is configured with AC frequency control, which allows for precise speed adjustment to control the feeding volume.

What types of disk linings are available? Standard options include 16Mn lining, high chromium cast iron lining, and polymer non-stick oil-bearing nylon lining. Other materials can be requested.

What range of material densities can the feeder handle? The PZH series is designed to handle materials with a heap density ranging from 0.5 to 2.5 t/m³.

What is the maximum feeding capacity of the largest model? The PZH-40 model has a rated feeding capacity ranging from 130 to 1100 tons per hour.

What is the maximum material size suitable for this feeder? The PZH series can accommodate materials with a maximum size content of up to 80mm.
