Product Description

Features & Advantages

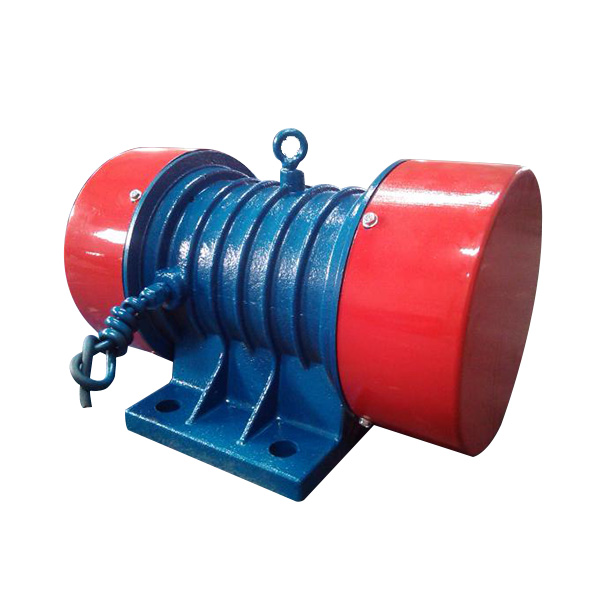

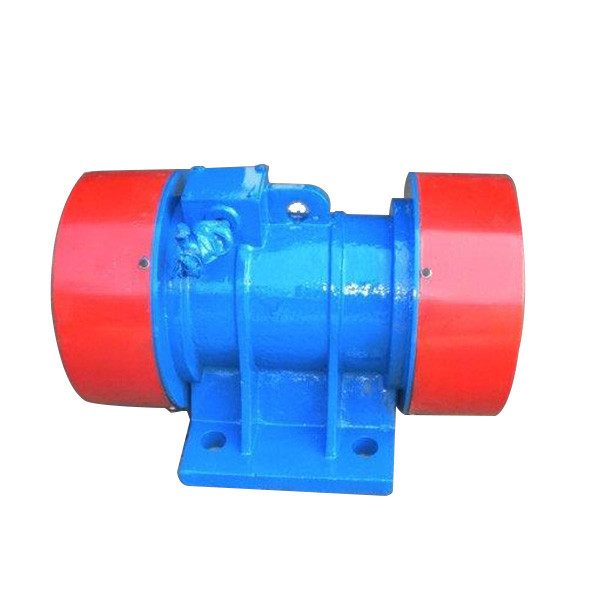

The YZO series vibrating motor stands as a specialized asynchronous motor designed to integrate the power source and vibration source into one cohesive unit. Characterized by its simple structure and ease of operation, it offers unmatched reliability for industrial applications.

✓

Small footprint and lightweight design, ensuring convenient installation and low long-term operating costs.

✓

Easily adjustable excitation force to meet specific mechanical requirements.

✓

Stable vibration frequency and high efficiency without the need for complex transmission devices.

✓

Robust vibration resistance combined with large power distance and significantly low operational noise.

✓

Fully enclosed structure, making it ideal for harsh environments with high dust content.

Use & Maintenance Guidelines

The ambient operating temperature should not exceed 40 ℃ (power reduction is required if this limit is exceeded).

The allowable bearing temperature, measured via the thermometer method, must not exceed 95 ℃.

Ideal for use at altitudes up to 1000m. For higher altitudes, temperature appreciation should be reduced by 0.5℃ for every 100m increase, up to a maximum of 4000m.

Ensure the ambient air is free of conductive dust and contains no flammable, explosive, or corrosive gases.

Technical Specifications

Model	Exciting Force	Power (Kw)	Current (A)	Main Structure (mm)
Model	Exciting Force	Power (Kw)	Current (A)	L	H	A	B	C	D	E	F	H	Φ
YZ0-1-2	1	0.09	0.29	200	178	74	145	40	120	0	62	10	10
YZO-1.5-2	1.5	0.15	0.35	300	170	149	210	125	180	100	70	25	10
YZO-2.5-2	2.5	0.25	0.58	328	170	178	220	150	180	122	70	25	12
YZO-5-2	5	0.4	1.15	362	190	208	270	176	220	142	90	40	14
YZO-8-2	8	0.75	1.84	422	242	246	292	180	236	120	160	25	18
YZO-16-2	16	1.5	3.48	447	206	267	292	200	236	141	160	30	18
YZO-30-2	30	2.5	5.75	614	443	387	465	283	385	207	245	35	30
YZO-2.5-4	2.5	0.25	0.58	328	170	178	220	ISO	180	122	70	25	12
YZO-5-4	5	0.4	1.15	388	190	208	270	176	220	142	90	40	14
YZO-8-4	8	0.75	1.84	422	247	246	292	180	236	120	160	25	18
YZ0-17-4	17	0.75	1.8	420	300	240	320	150	260	90	170	25	28
YZO-30-4	30	2.5	5.75	530	385	306	400	184	326	100	186	35	30
YZO-50-4	50	3.7	7.4	530	385	306	400	184	326	100	186	35	30
YZO-75-4	75	5.5	11	620	435	384	520	248	440	158	240	35	36
YZO-2.5-6	2.5	0.25	0.58	354	216	170	270	146	220	122	90	40	12
YZO-5-6	5	0.4	1.15	400	190	210	270	176	220	142	90	40	14
YZO-8-6	8	0.75	1.84	471	298	249	292	179	236	123	116	25	18
YZO-10-6	10	1	2.3	476	247	246	292	180	236	120	160	25	18
YZO-20-6	20	2	4.1	522	310	298	330	224	270	172	120	25	20
YZO-30-6	30	2.5	5.75	530	385	306	400	184	326	100	186	35	30
YZO-50-6	50	3.7	7.4	550	385	300	400	184	326	94	186	35	30
YZO-75-6	75	5.5	11	660	475	400	530	248	440	170	240	35	36
YZO-100-6	100	7.5	15	660	605	430	620	240	460	90	220	40	36
YZO-130-6	130	10	19	471	605	430	620	240	460	90	220	40	40
YZO-5-8	5	0.4	1.15	700	260	250	300	180	236	124	116	40	18
YZO-8-8	8	0.75	1.84	440	298	208	292	174	236	120	116	40	20
YZO-20-8	20	2	4.1	566	387	328	330	254	270	194	120	25	20
YZO-30-8	30	2.5	5.75	590	401	288	406	184	326	108	186	35	30
YZO-50-8	50	3.7	7.4	647	431	311	480	155	390	55	250	35	33
YZO-75-8	75	5.5	11	740	475	384	520	248	440	158	240	35	36
YZO-100-8	100	7.5	15	700	605	430	620	240	460	90	220	40	36
YZO-130-8	130	10	19	700	605	430	620	240	460	90	220	40	40

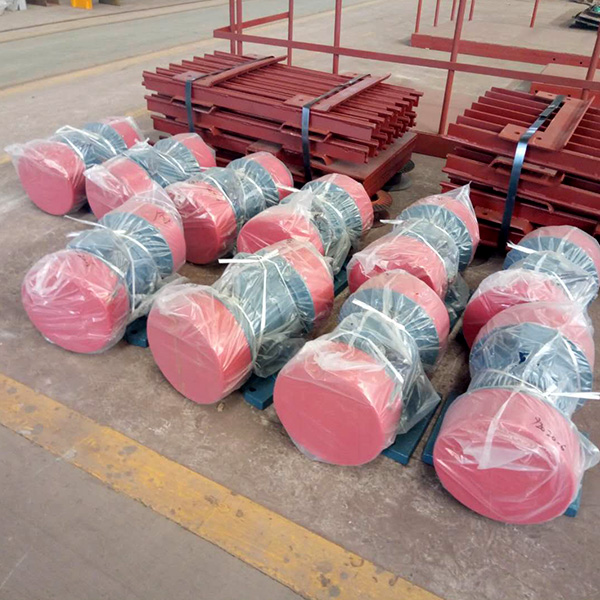

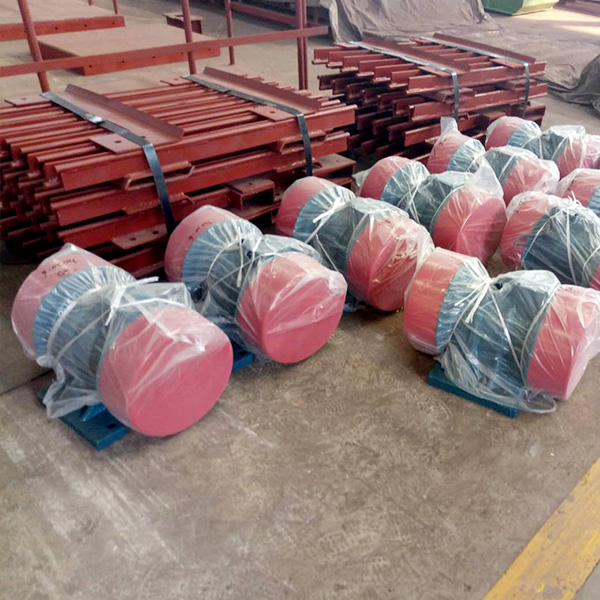

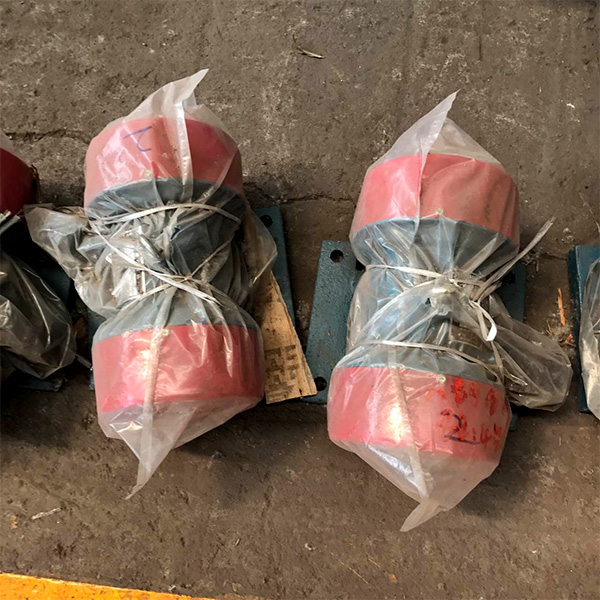

Product Display

Frequently Asked Questions

Q1: What environments are YZO series motors suitable for? Thanks to their fully enclosed structure, they are suitable for various industrial occasions, including those with high dust content, provided the air is free of explosive or corrosive gases.

Q2: Can the vibration intensity be modified? Yes, one of the key features of the YZO series is the adjustable excitation force, allowing you to customize the vibration output according to your machine's needs.

Q3: What is the maximum operating temperature for the bearings? The allowable temperature for the bearings should not exceed 95℃ when measured using the thermometer method to ensure long-term durability.

Q4: Are there specific requirements for installation altitude? The motors are designed for altitudes below 1000m. If used above this level (up to 4000m), the power and temperature appreciation must be adjusted accordingly.

Q5: Why is the YZO series considered cost-effective? They offer high efficiency, stable frequency, and a simple structure that eliminates the need for complex transmission systems, resulting in lower installation and maintenance costs.

Q6: How does the motor handle noise during operation? The YZO series is engineered for strong vibration resistance while maintaining a low noise profile, ensuring a better working environment compared to traditional vibration sources.
