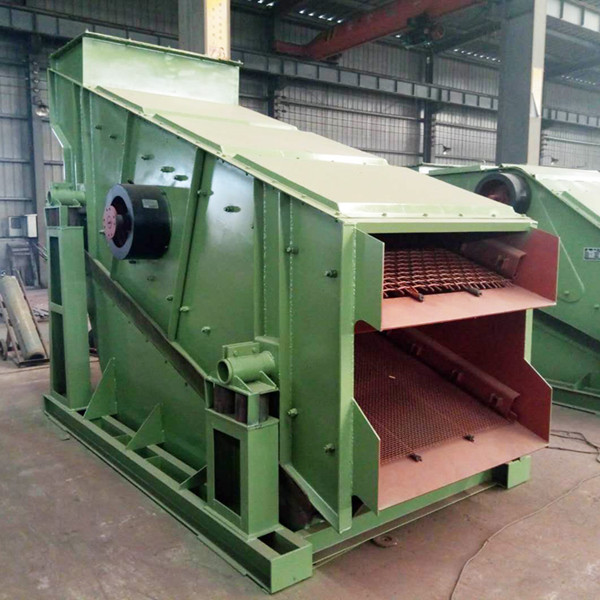

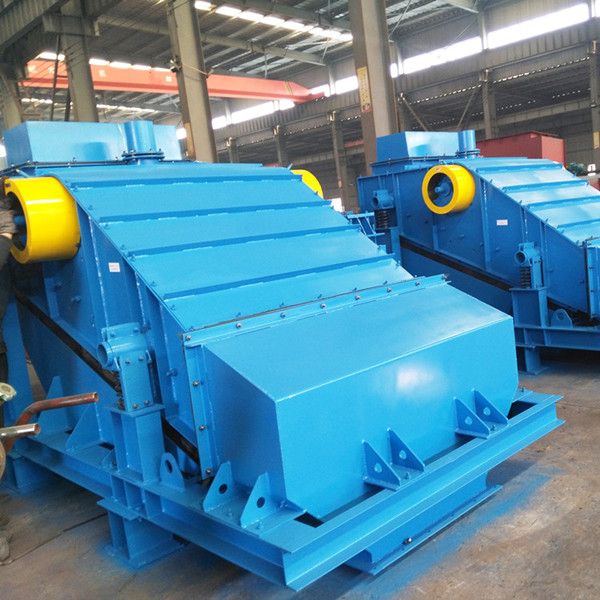

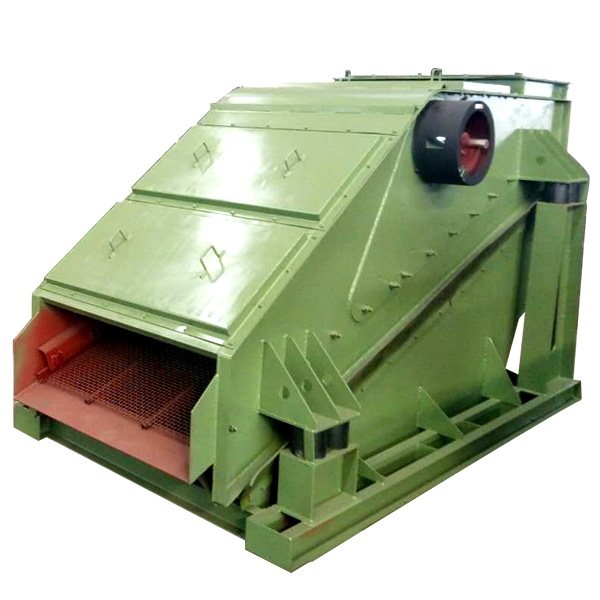

YK series circular vibrating screen is a sieving machine developed according to the needs of customers and advanced technology. Its vibration parameters are similar to world-class screen machines. The movement of the sieve box is circular, ensuring efficient separation.
| Model | Screen Surface Area (㎡) | Feeding Granularity (mm) | Processing Capacity (t/h) | Sieve Pore Size (mm) | Vibration Frequency (Hz) | Motor Model | Motor Power (Kw) | Single Point Dynamic Load (N) |
|---|---|---|---|---|---|---|---|---|
| YK1224 | 2.88 | ≤200 | 70-250 | 10-40 | 16 | Y132M1-6 | 4.0 | 900 |
| 2YK1224 | 2*2.88 | ≤200 | 70-250 | 10-40 | 16 | Y132M2-6 | 5.5 | 1230 |
| YK1530 | 4.5 | ≤400 | 200-650 | 10-100 | 16 | Y160M-6 | 7.5 | 1350 |
| 2YK1530 | 2*4.5 | ≤400 | 200-650 | 10-40 | 16 | Y160M-6 | 7.5 | 1750 |
| YK1536 | 5.4 | ≤400 | 250-750 | 10-40 | 16 | Y160L-6 | 11*2 | 1750 |
| 2YK1536 | 2*5.4 | ≤400 | 250-750 | 10-40 | 16 | Y160L-6 | 11*2 | 1950 |
| YK1836 | 6.48 | ≤400 | 250-750 | 10-40 | 16 | Y160L-6 | 15 | 1850 |
| 2YK1836 | 2*6.48 | ≤400 | 250-750 | 10-40 | 16 | Y180L-6 | 18.5 | 2200 |
| YK1848 | 8.64 | ≤400 | 250-850 | 10-40 | 12.25 | Y200L1-6 | 22 | 2120 |
| 2YK1848 | 2*8.64 | ≤400 | 250-850 | 10-40 | 12.25 | Y225M-8 | 22 | 2540 |
| YK2148 | 10.08 | ≤400 | 250-1000 | 10-40 | 12.25 | Y225M-8 | 22 | 1310 |
| 2YK2148 | 2*10.08 | ≤400 | 250-1000 | 10-40 | 12.25 | Y225M-8 | 30 | 1550 |
| YK2160 | 12.6 | ≤400 | 250-1200 | 10-40 | 12.25 | Y250M-8 | 30 | 1510 |
| 2YK2160 | 2*12.6 | ≤400 | 250-1200 | 10-40 | 12.25 | Y250M-8 | 30 | 1820 |
| YK2665 | 15 | ≤400 | 250-1400 | 10-40 | 12.25 | Y280S-8 | 37 | 1750 |
| 2YK2665 | 2*15 | ≤400 | 250-1400 | 10-40 | 12.25 | Y280S-8 | 37 | 2100 |
