Product Description

Introduction

The Roller Crusher lets the crushed material fall into the two rollers through the feeding port, and crushes the finished material naturally. For hard or unbreakable objects, the roller of the roller crusher can automatically yield by the action of hydraulic cylinder or spring, so that the gap of the roller increases, hard or unbreakable objects fall down, so as to protect the Crusher from damage.

There is a certain gap between the two rollers rotating opposite to each other. By changing the gap, the maximum discharge particle size of the product can be controlled. Double roller crusher is to use a pair of rotating round roll, and four type roll crusher is to use two pairs of rotating round roll.

Crusher Machine is for fine crushing of ore, rock and refractory under medium hardness. It is more excellent than the general crusher in the refractory and mining industry. In recent years, it is also widely used in crushing steel sand and other industries.

⚙️
Main Components
Roller wheel, roller supporting bearing, pressing and regulating device, driving device and other parts.
🏗️
Operating Conditions
Suitable for various industrial and mining conditions such as mine underground, mining room and open air.
📏
Adjustable Precision
Able to adjust discharge granularity to meet specific production requirements.
Target Industries
Mining Industry Coal Industry Cement Industry Steel Industry Chemical Industry Building Materials Plant Refractory Industry
Technical Parameter
Model Feed size (mm) Discharge granularity (mm) Capacity (t/h) Motor Power (kw) Weight (t) Dimensions (LxWxH mm)
2PG400×250 <35 ≤2-8 2-10 2×5.5 1.3 2150×980×800
2PG400×400 <35 ≤2-8 5-12 2×7.5 2.3 2360×1100×800
2PG610×400 <65 ≤2-20 5-20 2×15 3.9 3510×1420×1030
2PG750×500 <75 ≤2-25 10-40 2×18.5 9.5 4210×1630×1260
2PG400×250 <80 ≤2-25 12-45 2×22 10.8 4505×1780×1320
2PG800×600 <100 ≤3-30 20-65 2×30 14.9 5310×2175×1595
2PG1000×700 <120 ≤3-35 35-80 2×37 25.5 6290×2270×1870
2PG1500×800 <130 ≤3-45 50-120 2×75 33.7 7460×2410×2290
2PG1600×1000 <150 ≤3--50 60-140 2×90 41.2 8220×2680×2475

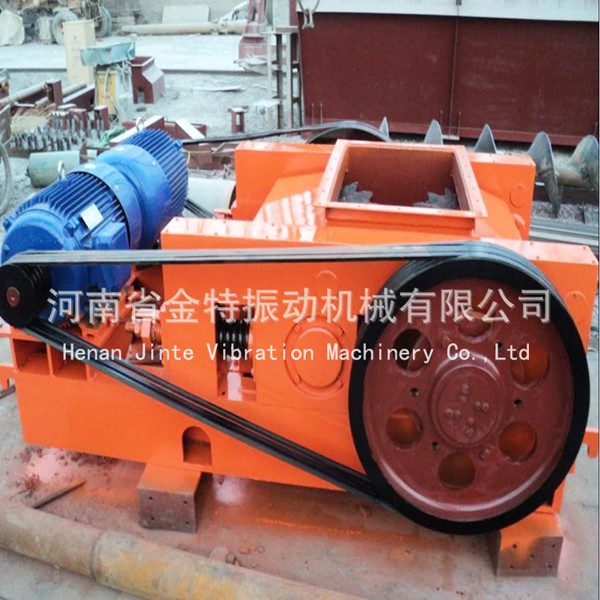

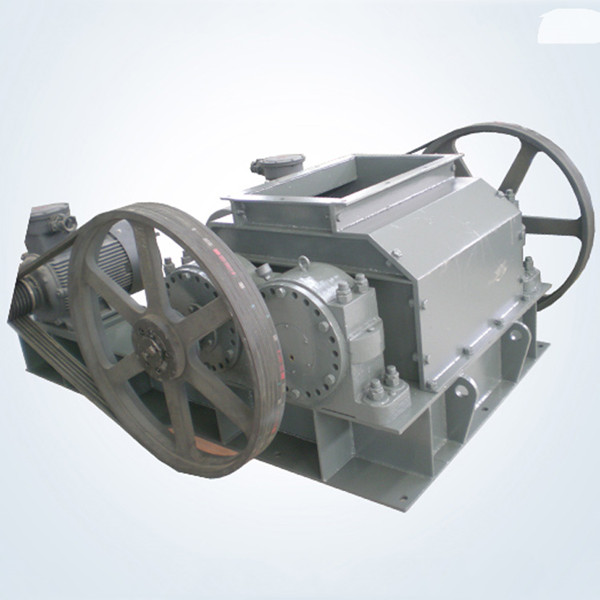

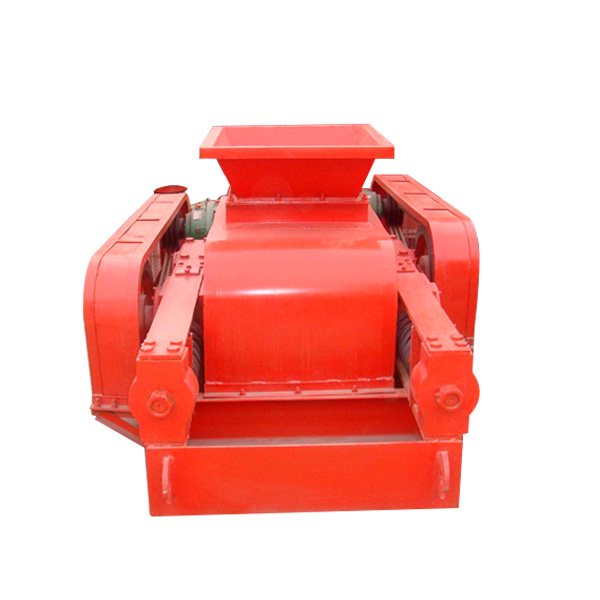

Product Gallery
Roller Crusher 1
Roller Crusher 2
Roller Crusher 3
Roller Crusher 4
Roller Crusher 5
Roller Crusher 6
Frequently Asked Questions
How does a roller crusher handle extremely hard materials?
The machine is equipped with a hydraulic cylinder or spring system. When an unbreakable object enters, the rollers automatically yield, increasing the gap to let the object pass safely, protecting the machine from damage.
Can I control the size of the finished output?
Yes. By adjusting the gap between the two rotating rollers, you can precisely control the maximum discharge particle size of the product.
What is the difference between double and four-type roller crushers?
A double roller crusher utilizes one pair of rotating round rolls, while the four-type roller crusher uses two pairs of rotating round rolls for more intensive crushing requirements.
What materials are best suited for this equipment?
It is ideal for fine crushing of ore, rock, and refractory materials under medium hardness, as well as steel sand and other industrial materials.
Where can this crusher be installed?
The equipment is versatile and designed for various environments, including underground mines, indoor mining rooms, and open-air industrial sites.
What are the primary industries that benefit from roller crushers?
This series is widely used in mining, coal, cement, steel, chemical, building materials, and refractory industries.
