Product Description

Introduction

DY type Mobile Belt Conveyor is a kind of highly efficient loading and unloading Conveyor Machine. It is mainly used for loading and unloading places, such as ports, wharves, stations, coal yards, warehouses, construction sites, sand and stone material yards, farms, etc. It is designed for short-distance transportation and loading/unloading of bulk materials or single pieces of articles weighing less than 100kg.

DY type Conveyor Belt is divided into lifting type and non-lifting type. The operation of the conveyor belt is driven by an electric drum, and the lifting and operation of the whole machine are non-motorized. The rotating device is an electric roller equipped with pneumatic tires and steel wheels. For machines over 10 meters, the inclination angle can be adjusted.

⚙️ High Precision: Hard surface gear with 2-3 times higher bearing capacity than soft masks.

⏳ Long Lifespan: Durable construction with a service life of up to 10 years.

⚖️ Compact Design: Light weight and small size, reducible by 50% compared to traditional models.

⛏️ Versatile Use: Highly suitable for coal mine transportation and clustered structures.

Technical Parameters

Project		DY4031	DY4051	DY4071	DY10101
Captain (m)		3	5	7	10
Belt Width (mm)		400	400	400	400
Belt Speed (m/s)		1.6	1.6	1.6	1.6
Maximum Conveying Height (m)		1.2	1.2	1.3	1.29
Conveying Capacity	(m³/h)	90	90	90	90
	(t/h)	80	80	80	80
Inclination angle (°)	17°	10°	8°	5°58'	-
Electric Drum	Model	DY1.2	DY1.2	DY1.2	DY1.2
	Power (Kw)	1.5	1.5	1.5	1.5
Total Weight (Kg)	320	391	467	592	-

Project		DY5051	DY5071	DY50101	DY50102	DY50102A	DY50151	DY50152	DY50152A
Captain (m)		5	7	10	10	10	15	15	15
Belt Width (mm)		500	500	500	500	500	500	500	500
Belt Speed (m/s)		1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Max Height (m)		1.63	1.59	1.77	4.52	4.52	1.61	6.32	6.32
Capacity	(m³/h)	160	160	160	125	125	160	125	125
	(t/h)	145	145	145	112	112	145	112	112
Inclination (°)		13°59′	9°16′	6.5°	10°〜22°	10°〜22°	3.81°	10°〜22°	10°〜22°
Electric Drum	Model	DY1.4	DY1.4	DY1.4	DY1.5	DY1.3	DY1.4	DY1.6	DY1.3
	Power (Kw)	2.2	2.2	2.2	3.0	1.1	2.2	4	1.1
Total Weight (Kg)		518	604	892	1126	1071	1225	1491	1491

Project		DY6551	DY6571	DY65101	DY65102	DY65102A	DY65151	DY65152	DY65152A
Captain (m)		5	7	10	10	10	15	15	15
Belt Width (mm)		650	650	650	650	650	650	650	650
Belt Speed (m/s)		1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Max Height (m)		1.55	1.52	1.82	4.56	4.56	1.85	6.48	6.48
Capacity	(m³/h)	290	290	290	224	—	290	224	—
Capacity	(t/h)	265	265	265	200	200	265	200	200
Inclination (°)		13°29'	8°53'	6.5°	10°〜22°	10°〜22°	4.3°	10°〜22°	10°〜22°
Electric Drum	Model	DY1.9	DY1.9	DY1.10	DY1.11	DY1.8	DY1.10	DY1.12	DY1.8
Electric Drum	Power (Kw)	2.2	2.2	3.0	4.0	1.5	3.0	5.5	1.5
Total Weight (Kg)		585	683	1010	1286	1231	1399	1747	1691

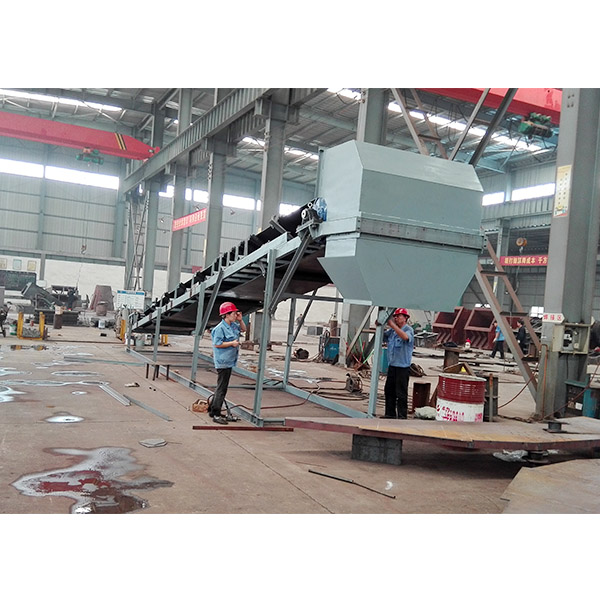

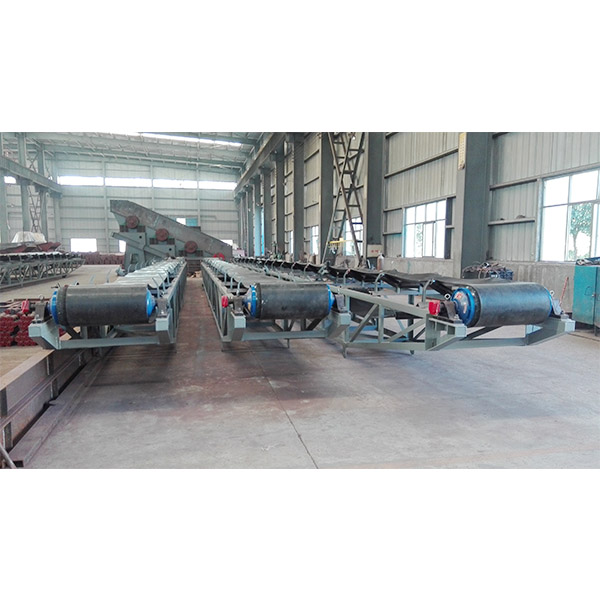

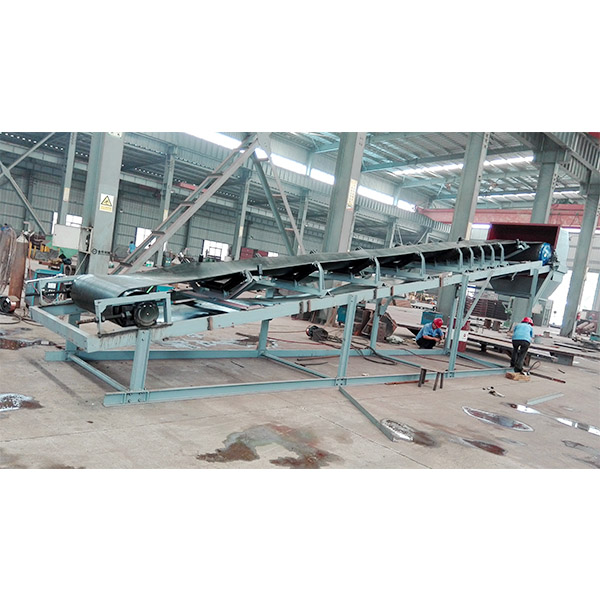

Product Display

If you want to know the difference between Screw Conveyor and Belt Conveyor, please refer to our technical news comparison guides.

Frequently Asked Questions

1. What materials are suitable for the DY type mobile belt conveyor? It is ideal for bulk materials or single pieces weighing less than 100kg, commonly used for coal, sand, stone, and farm produce.

2. How is the machine moved and operated? The belt is driven by an electric drum, while the movement of the whole machine is facilitated by pneumatic tires and steel wheels.

3. Can the inclination angle be adjusted? Yes, for units with a captain length of 10 meters or more, the inclination angle can be adjusted to suit different loading requirements.

4. What is the difference between lifting and non-lifting types? Lifting types allow for height adjustment for varied stacking heights, while non-lifting types maintain a fixed height for standard horizontal or fixed-angle transport.

5. What makes the hard surface gear superior? The high-precision hard surface gear offers 2-3 times higher bearing capacity than soft mask wheels and contributes to a lifespan of up to 10 years.

6. Is this conveyor suitable for mining environments? Absolutely, its clustered structure, compact footprint (reduced by 50%), and high durability make it highly suitable for coal mine transportation.
