| No. |
Name |
Specification Model |
Quantity |
Technical Parameter Performance |
| 1 |
42 rolls Roller screen |
JGS-φ102*1200 |
1 set |
Roller specification: φ102x1200 (mm) |
| Screening effective length: 4824mm |
| Number of rollers: 42 (33 screen gaps: 6mm) |
| 9 screen gaps: 18mm |
| Speed: 126r/min |
| Motor Model: BWY0-11-0.75 (Cycloidal pin gear) |
| Power: 0.75Kw |
| Voltage: 380V |
| Motor Speed: 1390r/min |
| Speed ratio: 11 |
| Transmission mode: Single roller single motor drive |
| Screen angle: 10° |

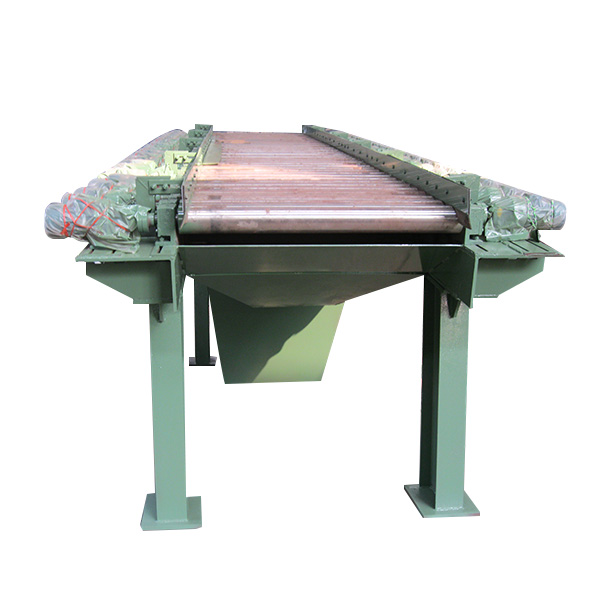

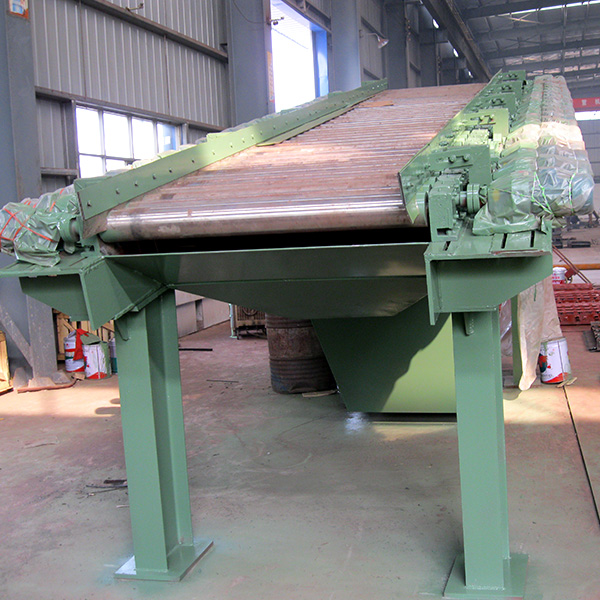

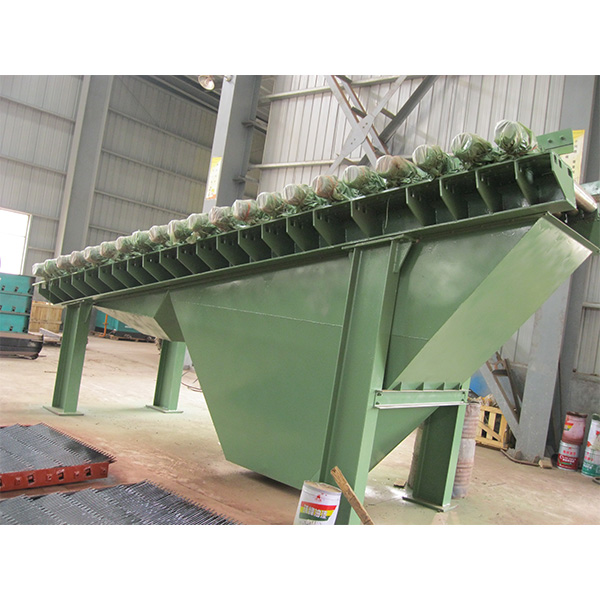

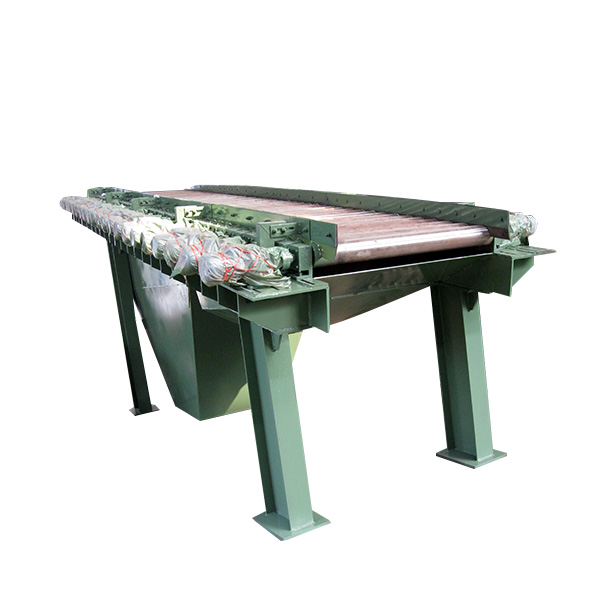

JGS Roller Screen is a kind of wet ball screening equipment, specially designed for controlling pelletizing and discharging particle size. The screen machine main functions are reflected in the following two aspects:
- Screen out the green balls that do not meet the requirements of the production process size.
- Further strengthen the strength of the green ball. The screen has the characteristics of non-bending roll, long service time, smooth and even spherical roll.
Advanced Design: The roller screen is composed of a driving device, a roller body and an adjustment support. Each roller drives independently and can meet the requirements of micro adjustment of roll seam.
The traditional roller screen transmission mode adopts gear transmission. When used for a period of time, the spacing between the screen rollers become larger, the rollers cannot be adjusted, a lot of qualified ball leak, which resulting in low efficiency of the roller screen.
JGS roller screen adopts the mode of single roller and single motor drive, which can adjust the gap of each roller arbitrarily, and is not affected by the large cumulative adjustment amount caused by the number of rollers, so that the screen roller can be used to the maximum extent.
According to different requirements of production, the device can be used for different grain size screening to ensure the uniform and qualified grain size. Each single roller adopts single drive, drive and sieve roller support to adjust synchronously. The combination of a tight way to lock, use and adjustment is more convenient. Electrical control is opened and stopped by one point, which is convenient for post operation.
Frequently Asked Questions
1. What is the primary use of the JGS Roller Screen?
It is primarily designed for wet ball screening, specifically for controlling pelletizing sizes and discharging particle sizes in production processes.
2. How does the single roller drive system benefit the operation?
Unlike traditional gear transmissions, the single roller single motor drive allows for arbitrary gap adjustment for each roller, preventing leaks of qualified balls and maximizing roller life.
3. Can the screen gap be customized?
Yes, the design allows for micro-adjustments of the roll seam. In standard configurations, it features different gaps (such as 6mm and 18mm) to meet specific screening needs.
4. What are the key technical advantages of this equipment?
Key advantages include non-bending rolls, synchronized adjustment of drive and sieve supports, and a one-point electrical control system for convenient operation.
5. Is the equipment suitable for sintering plants?
Yes, it is widely used in pelletizing and sintering plants to ensure uniform grain size and reduce repair workloads compared to traditional screening methods.
