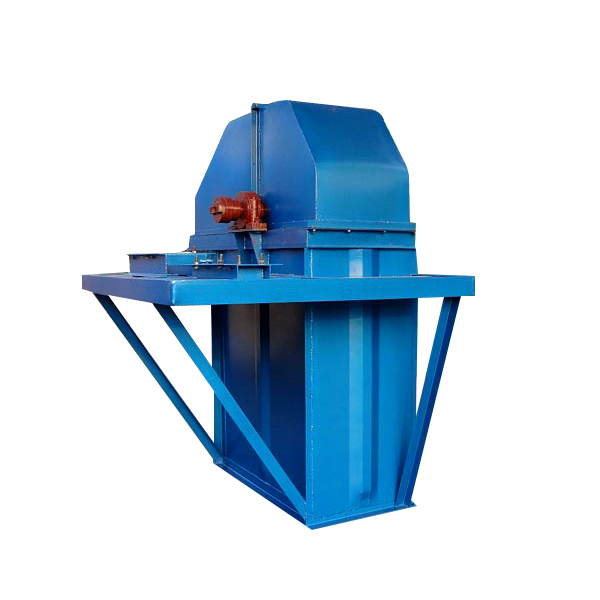

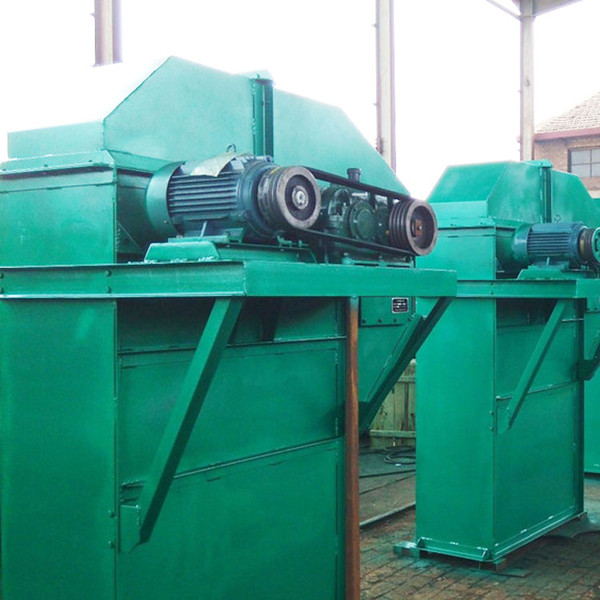

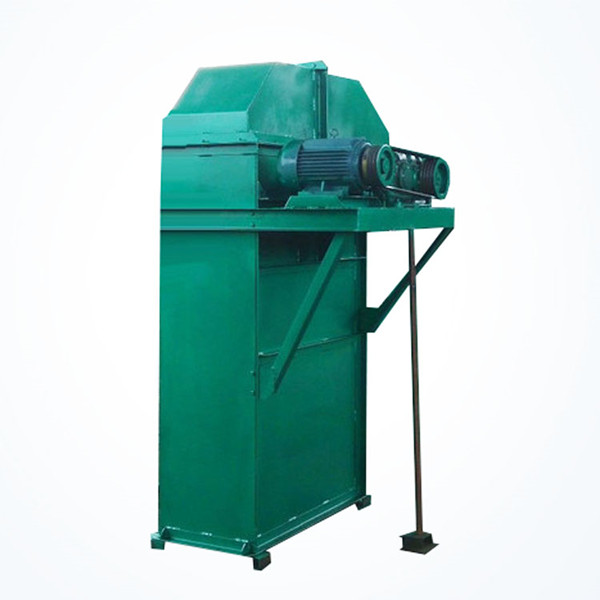

D(TD)-Type vertical Bucket Elevator is composed by moving parts (hopper and traction tape), with the upper section of the drive roller, with the lower section of the idler pulley, intermediate casing, driving device, non-return brake, etc. This bucket elevator is characterized by rapid centrifugal discharge.
Temperature Limits: Material temperature shall not exceed 60°C. 150°C is allowed if the heat-resistant rubber belt is used.
Capacity Range: The bucket elevator capacity is 3.1 ~ 66 cubic meters per hour.
Lifting Height: Efficient vertical transportation with a height range of 4 ~ 30 meters.
Traction Component: Uses rubber conveyor belt; not suitable for large pieces with high grinding/cutting resistance.
Suitable Applications: Ideal for the upward transportation of small and loose powder, granular materials such as coal, sand, dust coke, cement, mineral water, and similar bulk materials.
?
Frequently Asked Questions
What materials can the D(TD)-Type bucket elevator handle?
It is suitable for small, loose powder and granular materials such as coal, sand, dust coke, cement, and mineral water. It is not recommended for large materials with high grinding or cutting resistance.
What is the maximum allowable temperature for transported materials?
The standard temperature limit is 60°C. However, by using a specialized heat-resistant rubber belt, the elevator can handle materials up to 150°C.
How high can this bucket elevator lift materials?
The D(TD)-Type vertical bucket elevator is designed for lifting heights ranging from 4 meters to 30 meters.
What is the typical transport capacity of this equipment?
Depending on the specific model and material, the capacity ranges from 3.1 to 66 cubic meters per hour.
What type of discharge method does this elevator use?
This series is characterized by a rapid centrifugal discharge method, which is efficient for powder and granular transport.
Why is the belt-type bucket elevator not suitable for large, abrasive pieces?
Since a rubber belt acts as the traction component, large pieces with high grinding and cutting resistance can damage the belt over time, reducing its lifespan.
