Product Description

ZD type vibrating hopper
📘Introduction
ZD type vibrating hopper is a new type of feeding equipment, which is installed at the bottom of the bin and used for arch breaking and even vibrating feeding. Vibrating hopper has good performance, which can realize arch breaking and continuous uniform discharging for all kinds of powdery and granular materials in the bin, and can eliminate segregation phenomenon of mixed materials with different particle size and gravity when they enter the bin.
🚀Main Advantages
  • All kinds of materials can be discharged continuously and stably without the phenomenon of flow material blocking.
  • The bin height can be greatly reduced, which is conducive to factory process layout.
  • Equipped with electrical control equipment, no stopping impact, low inertia in the process of starting and stopping.
  • BLZ vibration motor is adopted, with low noise, stable operation and simple maintenance.
  • Completely sealed and transported, without raising dust or polluting the environment.
  • No particle segregation during material discharging in the warehouse.
📊Technical Parameters
Model Productivity (t/h) Motor Model Motor Power(Kw) Voltage(V) Frequency (Hz) Interface Diameter (mm) External Dimensions (mm) Weight(Kg)
ZD-40 5-12 YZO-1.5-2 0.15 380 50 400 728*550*381 157
ZD-50 10-15 YZO-1.5-2 0.15 500 825*650*397 174
ZD-60 15-40 YZO-2.5-2 0.25 600 1055*750*451 182
ZD-100 30-80 YZO—5-2 0.4 1000 1505*1150*543 330
ZD-120 40-85 YZO-2.5-4 2*0.25 25 1200 1760*1350*606 414
ZD-150 45-90 YZO-5-4 2*0.4 1500 2014*1650*671 634
ZD-180 50-100 YZO-8-4 2*0.75 1800 2210*1950*760 875
ZD-200 80-150 YZO-8-4 2*0.75 2000 2820*2150*818 1055
ZD-550 90-160 YZO-17-4 2*0.75 2200 3055*2350*920 1240
ZD-250 100-180 YZO-17-4 2*0.75 2500 3340*2650*940 1595
ZD-280 150-240 YZO-20-6 2*2.0 16 2800 3560*2950*1055 2150
ZD-300 160-250 YZO-20-6 2*2.0 3000 4008*3150*1403 2526
🖼️Equipment Display

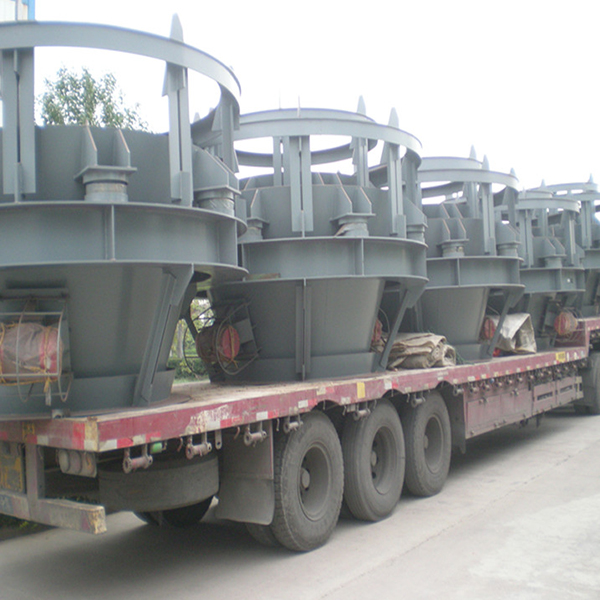

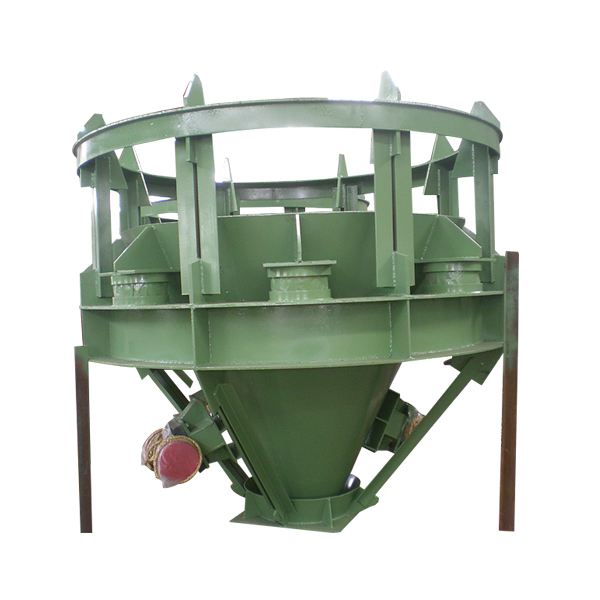

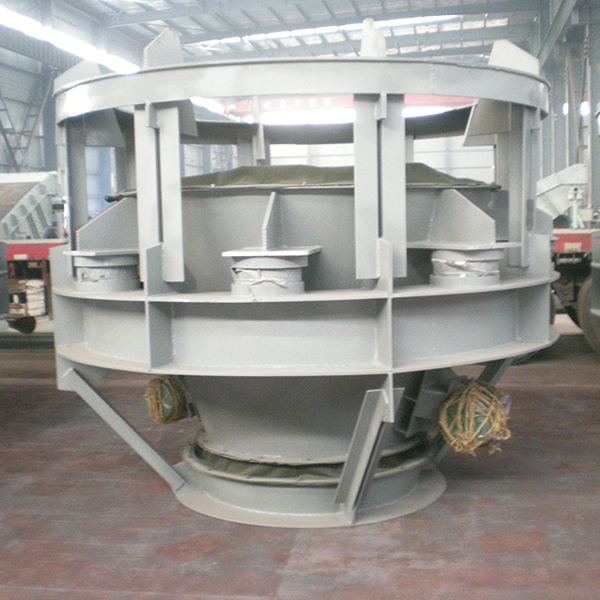

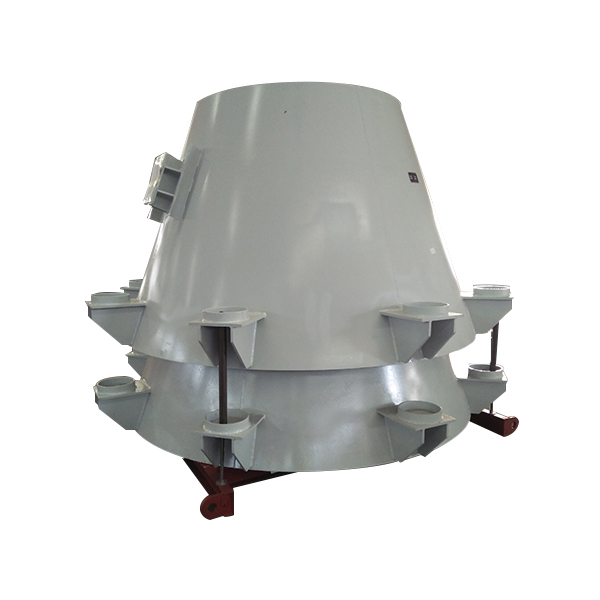

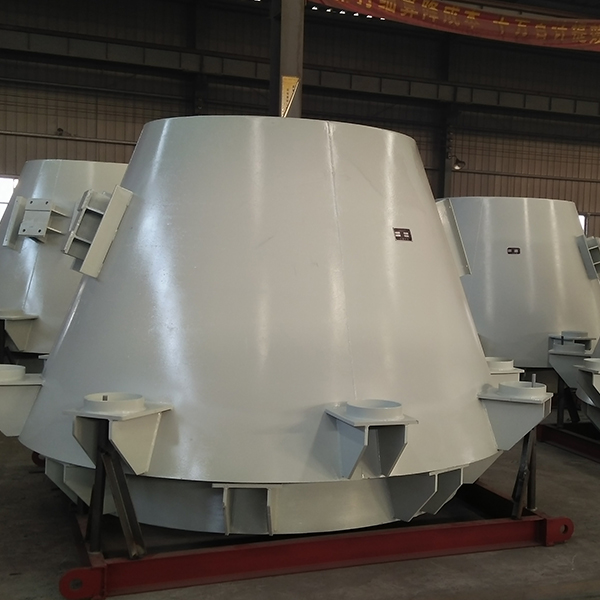

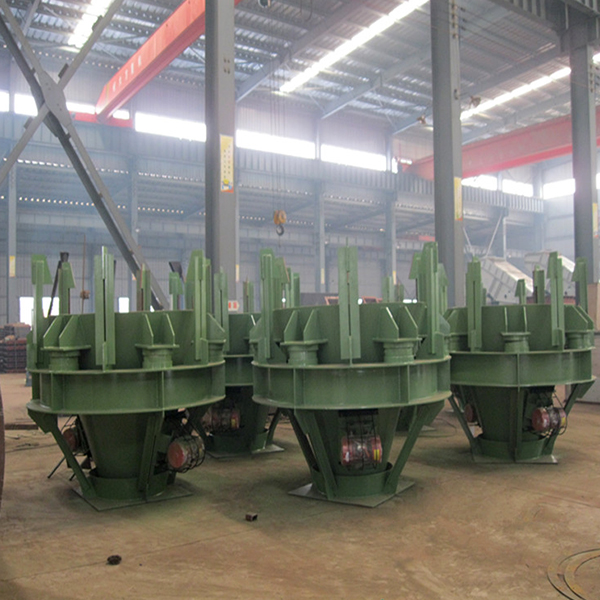

Vibrating hopper view 1 Vibrating hopper view 2 Vibrating hopper view 3 Vibrating hopper view 4 Vibrating hopper view 5 Vibrating hopper view 6
📦Application Scope
Chemicals: Ammonium sulfate, ammonium nitrate, ammonium perchlorate, potassium chloride, solid jet fuel, ammonia chloride, urea, sodium bicarbonate, barium sulfate, soda ash, talc, carbon black, activated carbon, pulverized coal, hydrated lime, pigment, additive, etc.
Minerals: Clay, silica, sand, polishing materials, plaster of Paris, aluminum oxide powder, etc. Cast sand, iron ore, sinter, mineral powder, iron oxide powder, coal powder, manganese dioxide, aluminum oxide powder, lead oxide, aluminum powder, titanium oxide, ferroalloy, non-ferroalloy additive, binder, mixture, etc.
Wood & Plastics: Sawdust, sawdust surface, by-products, etc. Plastic powder, plastic particles, crushed pieces, etc.
Food & Feed: Flour, soybean, peanut, starch, milk powder, salt, sugar, vitamin supplements, etc. Livestock feed, feed, powder, etc.
Construction & Others: Cement, cement raw material, pay material, etc. Filter, recycling, soda ash, fly ash, fixing residue, waste, etc.
❓Frequently Asked Questions
1. What is the main purpose of the ZD vibrating hopper?
It is primarily used for arch breaking and ensuring continuous, uniform discharging of powdery and granular materials from the bottom of a storage bin.
2. Does the equipment prevent material segregation?
Yes, it effectively eliminates the segregation of mixed materials with different particle sizes and gravity as they exit the bin.
3. What kind of motor does this vibrating hopper use?
The ZD vibrating hopper adopts a BLZ vibration motor, known for its low noise levels, stable operation, and ease of maintenance.
4. How does it handle environmental concerns like dust?
The equipment is completely sealed during material transport, which prevents dust from escaping and avoids polluting the surrounding environment.
5. Can the bin height be modified when using this hopper?
Yes, one of the benefits is that the bin height can be significantly reduced, which provides more flexibility for factory process layout.
6. Is it suitable for food-grade materials?
Absolutely. It can handle a wide range of food materials including flour, starch, milk powder, salt, and sugar.
